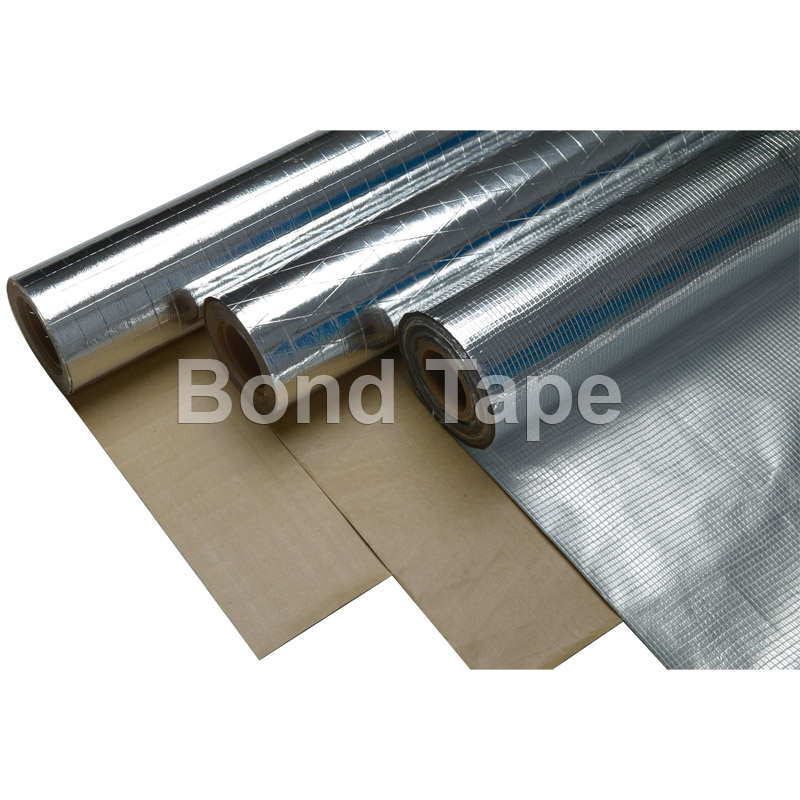

Heat-Sealing Foil-Scrim-Kraft Facing
bondtape product guide property
Product Guide
Product
Description
Application

Foil: 7u / PE / Kraft: 50gsm / Heat-Sealable PE: 25u

Eco Grade heat-sealing foil facing. No scrim inside. No need applying extra adhesive. Good corrosion resistance.

Foil: 7u / Heat-Resistance Glue / Kraft: 50gsm / 2-way Scrim 12.5x12.5mm / Heat-Sealable PE: 25u

Utility Grade, 2-way scrim heat-sealing FSK facing. Suitable for in-line lamination of glasswool, rockwool, mineral wool insulation. No need applying extra adhesive. Good corrosion resistance.

Foil: 18u / 2-way Scrim: 5x5mm / Heat-Sealable PE: 25u

Premium Grade heat-sealing foil-scrim facing. Suitable for in-line lamination with glasswool, rockwoo, mineral wool., and foam insulation. Thicker foil and very closer 2-way scrim. BS 476 Part 6 & 7 passed.

Foil: 7u / PE / 3-way Scrim 8 x12 ends / Kraft: 50gsm / Heat-Sealable PE: 25u

Utility Grade, 3-way scrim heat-sealing FSK facing. Suitable for in-line lamination of glasswool, rockwool, mineral wool insulation. No need applying extra adhesive. Good corrosion resistance.

Foil: 7u / 2-way Scrim 12.5x12.5mm / PE / Kraft: 50gsm / PE: 25u

Utility Grade, 2-way scrim heat-sealing FSK facing. Suitable for in-line lamination of glasswool, rockwool, mineral wool insulation. No need applying extra adhesive. Good corrosion resistance.

Foil: 7u / PE / 3-way Scrim 8 x12 ends / Kraft: 50gsm / Heat-Sealable PE: 25u

Commercial Grade, 3-way scrim heat-sealing FSK facing. Suitable for in-line lamination of glasswool, rockwool, mineral wool insulation. Thicker Kraft. No need applying extra adhesive. Good corrosion resistance.

Foil: 7u / 2-way Scrim 12.5x12.5mm / PE / Kraft: 50gsm / Heat-Sealable PE: 25u

Commercial Grade, 2-way scrim heat-sealing FSK facing. Suitable for in-line lamination of glasswool, rockwool, mineral wool insulation. Thicker Kraft. No need applying extra adhesive. Good corrosion resistance.

Typical Physical Properties
Product
Basic Weight
wvtr ng/N.s
Tensile MD N/25mm
Tensile XD N/25mm
Burst Strength
Fire Rating
--

IMPORTANT NOTE:

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.

3. The products should be stored at room temperature, kept away from wet and heat source.

4. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique.
